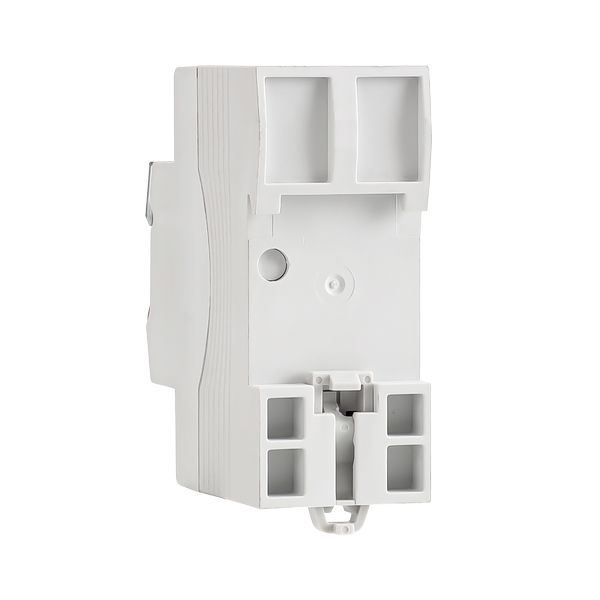

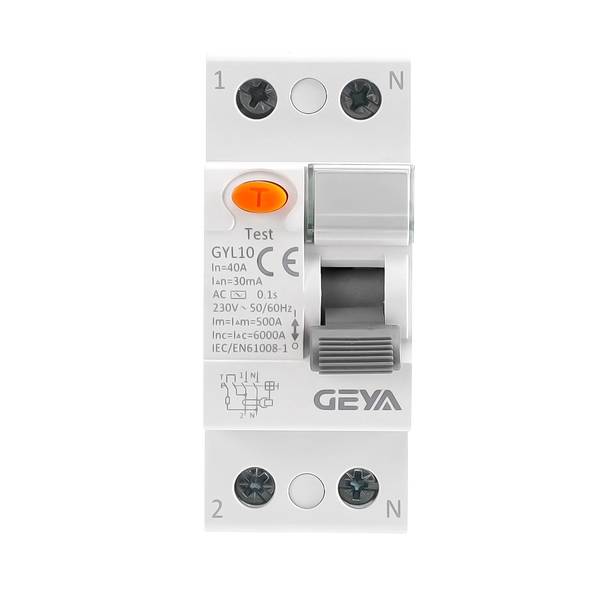

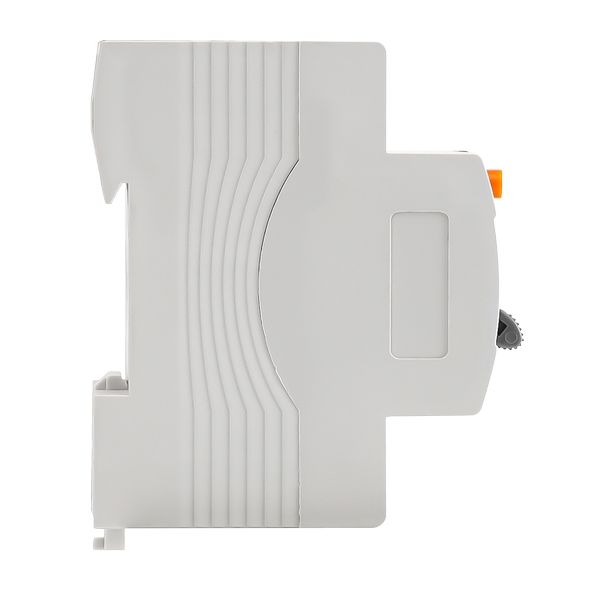

GYL10系列漏電斷路器

產品介紹：GYL10系列漏電斷路器，適?于額定電壓2P:240V、4P:415V，額定電流?63A的線路中。當??觸電或電?泄露電流超過規定值時，GYL10系列漏電斷路器能迅速切斷故障電源，保護??及?電設備的安全,也可作為線路的不頻繁轉換及電動機的不頻繁起動之?。

所屬分類：漏電斷路器返回上一級

價格：

促銷：

[
                                        {"產品型號": "GYL10M 2P 30mA AC A級","電流": "16-25A"},{"產品型號": "GYL10M 2P 30mA AC A級","電流": "32-40A"},{"產品型號": "GYL10M 2P 30mA AC A級","電流": "50-63A"},{"產品型號": "GYL10M 2P 100/300mA AC A級","電流": "16-25A"},{"產品型號": "GYL10M 2P 100/300mA AC A級","電流": "32-40A"},{"產品型號": "GYL10M 2P 100/300mA AC A級","電流": "50-63A"},{"產品型號": "GYL10M 2P 30mA AC B級","電流": "16-25A"},{"產品型號": "GYL10M 2P 30mA AC B級","電流": "32-40A"},{"產品型號": "GYL10M 2P 30mA AC B級","電流": "50-63A"},{"產品型號": "GYL10M 2P 100/300mA AC B級","電流": "16-25A"},{"產品型號": "GYL10M 2P 100/300mA AC B級","電流": "32-40A"},{"產品型號": "GYL10M 2P 100/300mA AC B級","電流": "50-63A"},{"產品型號": "GYL10M 4P 30mA AC A級","電流": "16-25A"},{"產品型號": "GYL10M 4P 30mA AC A級","電流": "32-40A"},{"產品型號": "GYL10M 4P 30mA AC A級","電流": "50-63A"},{"產品型號": "GYL10M 4P 100/300mA AC A級","電流": "16-25A"},{"產品型號": "GYL10M 4P 100/300mA AC A級","電流": "32-40A"},{"產品型號": "GYL10M 4P 100/300mA AC A級","電流": "50-63A"},{"產品型號": "GYL10M 4P 30mA AC B級","電流": "16-25A"},{"產品型號": "GYL10M 4P 30mA AC B級","電流": "32-40A"},{"產品型號": "GYL10M 4P 30mA AC B級","電流": "50-63A"},{"產品型號": "GYL10M 4P 100/300mA AC  B級","電流": "16-25A"},{"產品型號": "GYL10M 4P 100/300mA AC  B級","電流": "32-40A"},{"產品型號": "GYL10M 4P 100/300mA AC  B級","電流": "50-63A"},{"產品型號": "GYL10E 2P 30/100/300mA AC","電流": "16-25A"},{"產品型號": "GYL10E 2P 30/100/300mA AC","電流": "32-40A"},{"產品型號": "GYL10E 2P 30/100/300mA AC","電流": "50-63A"},{"產品型號": "GYL10E 4P 30/100/300mA AC","電流": "16-25A"},{"產品型號": "GYL10E 4P 30/100/300mA AC","電流": "32-40A"},{"產品型號": "GYL10E 4P 30/100/300mA AC","電流": "50-63A"},{"產品型號": "GYL10M 2P 100/300mA AC-S","電流": "32-40A"},{"產品型號": "GYL10M 2P 100/300mA AC-S","電流": "50-63A"},{"產品型號": "GYL10M 4P 100/300mA AC-S","電流": "32-40A"},{"產品型號": "GYL10M 4P 100/300mA AC-S","電流": "50-63A"},{"產品型號": "GYL10M 2P 30/100/300mA-A","電流": "16-25A"},{"產品型號": "GYL10M 2P 30/100/300mA-A","電流": "32-40A"},{"產品型號": "GYL10M 2P 30/100/300mA-A","電流": "50-63A"},{"產品型號": "GYL10M 4P 30/100/300mA-A","電流": "16-25A"},{"產品型號": "GYL10M 4P 30/100/300mA-A","電流": "32-40A"},{"產品型號": "GYL10M 4P 30/100/300mA-A","電流": "50-63A"},{"產品型號": "GYL10M 2P 30mA A-SI","電流": "16-25A"},{"產品型號": "GYL10M 2P 30mA A-SI","電流": "32-40A"},{"產品型號": "GYL10M 2P 30mA A-SI","電流": "50-63A"},{"產品型號": "GYL10M 4P 30mA A-SI","電流": "16-25A"},{"產品型號": "GYL10M 4P 30mA A-SI","電流": "32-40A"},{"產品型號": "GYL10M 4P 30mA A-SI","電流": "50-63A"}
                                        ]

產品介紹

咨詢服務熱線：13957717877

產品概述

資料下載

相關產品

相關資訊



GYL10系列漏電斷路器產品特點：

1、雙匯流排接線功能。

2、接線能力25mm2。

3、產品符合標準：IEC61008-1、GB16916.1。

GYL10系列漏電斷路器功能及應用：

1、功能：漏電保護。

2、應用：適用于工業、商業、高層和民用住宅等各種場合。

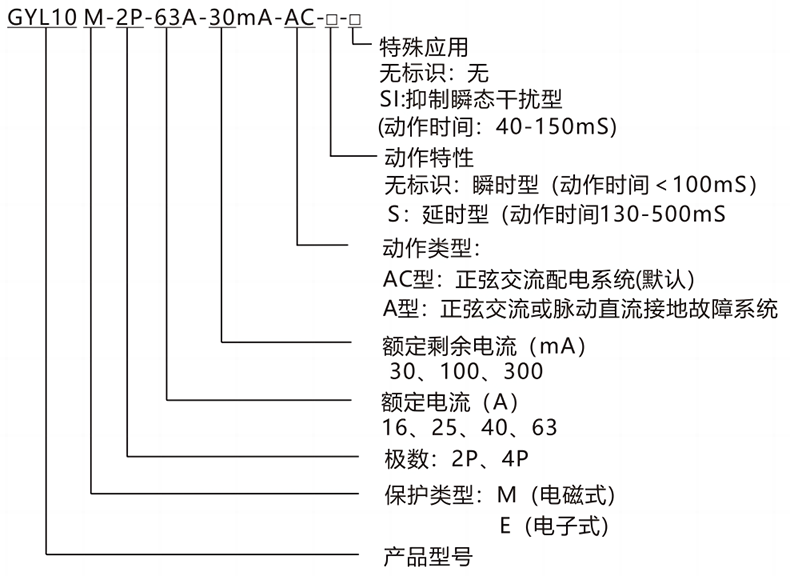

GYL10系列漏電斷路器型號及含義：

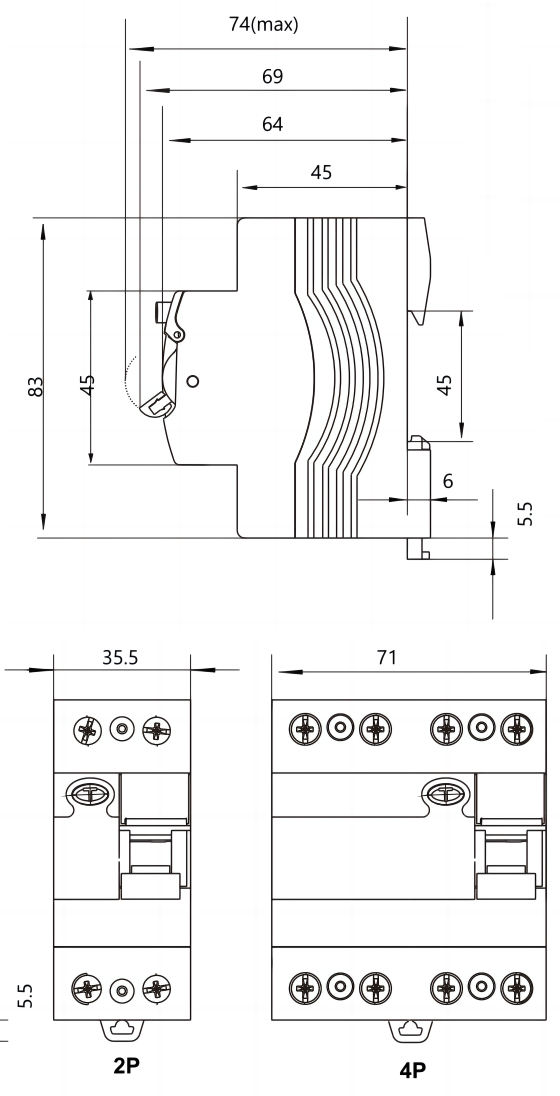

GYL10系列漏電斷路器產品尺寸：

GYL10系列漏電斷路器技術參數：

剩余電流動作類型			AC、A
額定電流	In	A	16、25、40、63
Poles			2P、4P
額定工作電壓	Un	V	240/415V
額定絕緣電壓	Ui	V	500
工作頻率		Hz	50/60
額定剩余動作電流	l△n	mA	30、100、300
額定沖擊耐受電壓	Uimp	V	4000
1分鐘介電耐壓		V	2000
額定限制短路電流	Inc	kA	4.5、6
額定限制剩余短路電流	l△C	kA	4.5、6
額定接通和分斷能力	lm	A	500A(25A,40A),或10In(≥63A)
額定剩余接通和分斷能力	\|△m	A	500A(25A,40A),或10In(≥63A)

GYL10系列漏電斷路器技術參數：

額定電流In(A)	額定剩余動作電流l△n(mA)	剩余電流分斷時間(s)
額定電流In(A)	額定剩余動作電流l△n(mA)	l△n	2l△n	5\|△n
16、25、40、63	30、100、300	0.1	0.08	0.04
